Product Introduction

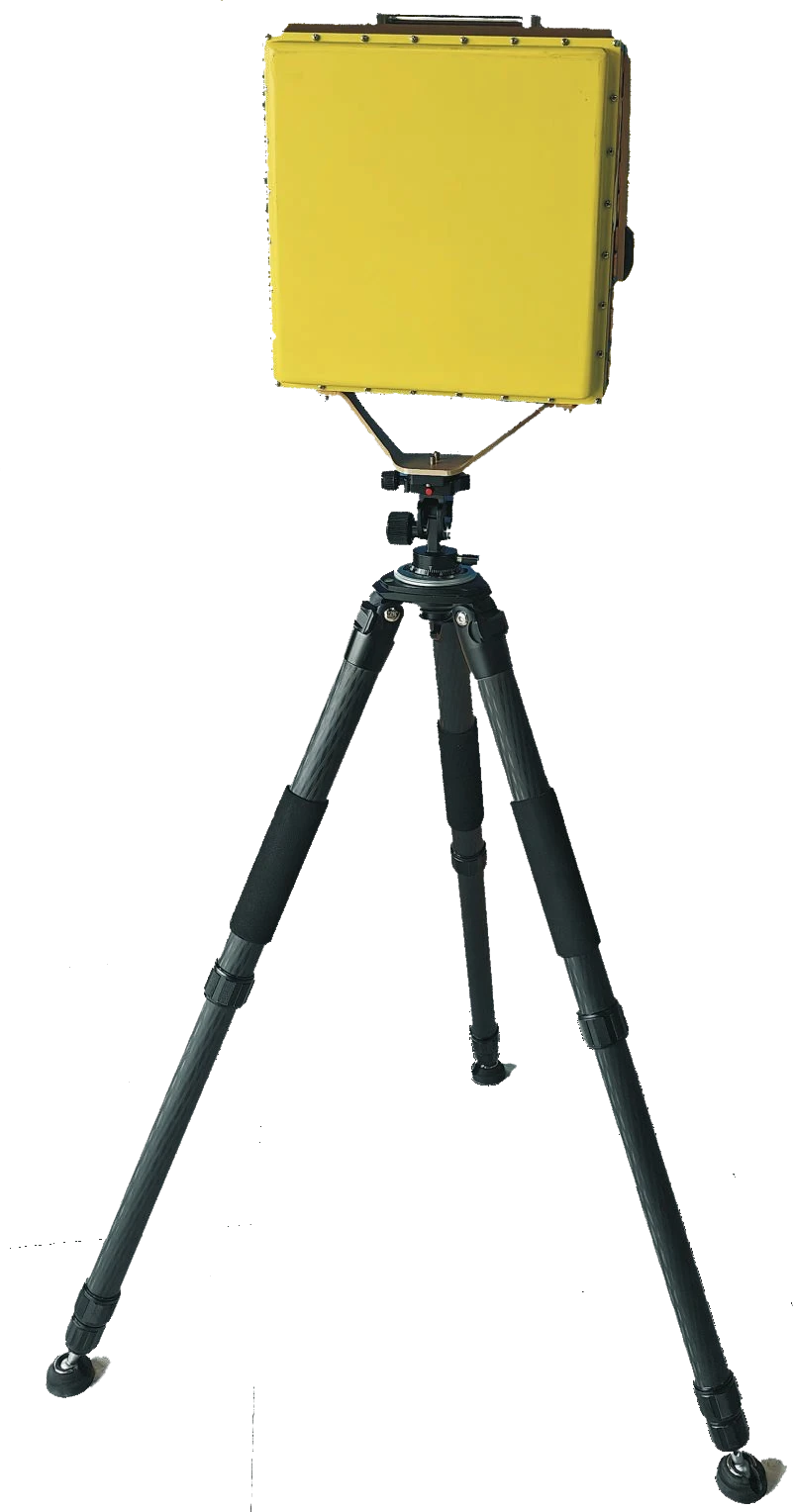

SOLAFACT – ADF2000: 360° Comprehensive Detection and Destruction Equipment
SOLAFACT ADF2000 is a state-of-the-art intelligent monitoring and early warning system designed for the detection, tracking, jamming, and neutralization of low-altitude aerial threats. It integrates radar, electro-optical imaging, electromagnetic jamming, and laser interception into a unified platform. The system is IP66-rated and can be operated by a single person, making it ideal for security at sensitive and strategic locations.
Features
- Comprehensive anti-drone countermeasures combining detection, tracking, interference, and destruction.
- Phased array radar system detects over 50 targets simultaneously at up to 5 km.
- 360° optical and thermal imaging for automated target identification and tracking.
- Multi-frequency radio interference suppresses and misleads drone navigation and communication.
- High-power laser weapon (up to 20,000 W) directly neutralizes aerial threats at 1 km.
- Supports five-band electromagnetic jamming simultaneously from 300 MHz to 6000 MHz.
Parameters
| Radar Section | |
|---|---|
| Operating Frequency Band | C/S/XKU Bands |
| Detection Range | 5 km, 10 km, 15 km |
| Target Size (RCS) | 0.01 m² |
| Detection Accuracy | ≤ 1 |
| Photoelectric Section | |
| Azimuth Angle Range | 360° |
| Elevation Angle Range | 75° |
| Maximum Azimuth Speed | ≥ 45°/s |
| Maximum Elevation Speed | ≥ 30°/s |
| Electro-Optical Section | |
| Visible Light Imaging System | Lens Focal Length: 30–2000 mm (optional); Effective Pixel Count: > 300W |
| Thermal Imaging System | Resolution: ≥ 640×512 / 1280×1024; Focal Length: 30–200 mm (optional) |
| Tracking Distance | 1 km |
| Positioning Accuracy | 0.01 |
| Jamming Section | |
| Flight Control Interference Frequency | 2400–2500 MHz, 5150–5850 MHz (expandable) |
| GPS Interference Frequency | 1500–7600 MHz |
| Interference Distance | 3 km |
| Effective Countermeasure Distance | 1–10 km |
| Destruction Section | |
| Laser Wavelength | 1080 nm (customizable) |
| Laser Power | 10–20,000 W (adjustable) |
| Cooling Method | Liquid Ammonia / Stirling / Air Cooling |
| Laser Engagement Distance | 1 km |
Application Area
- Battlefield: Supports modern warfare with all-round 360° defense, suppression, and destruction operations.
- Oil Fields: Provides airspace defense against drones, balloons, and light aircraft.
- Ammunition Depots: Delivers precision strikes and 24/7 surveillance in high-risk areas.
- Train Stations: Secures transport routes with rapid detection and elimination of airborne threats.
- Environmental Adaptability: Operates under extreme conditions—deserts, blizzards, heavy rain, hail, cold, heat, humidity, and darkness.
